VEVOR dual battery isolator kit enables your accessories to run from a separate battery while the engine is not running on your vehicle. In the meantime, it keeps your main battery charged and ensures your vehicle is always ready to go. We provide all the accessories needed for a complete installation. The VEVOR split charge relay kit fits perfectly into most cars, RVs, trucks, caravans, ships, boats, yachts, etc. Charge up optimally and stand up to the toughest challenges with VEVOR.
Dual Battery Isolator
Easy to Instal
Rugged & Durable
Superb IP65 Waterproof
Fit Various Vehicles
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
All Accessories Included
The split charger relay kit is equipped with all parts needed for a complete installation, including screws, cable ties, etc.
Simple to Connect
No alternator or ignition connection is needed. An easy 3-wire connection at the battery can be used with the existing wiring in the vehicle.
IP65 Waterproof Grade
The IP65 protection level ensures the split charger can be used optimally and remains protected from dust, rain, vibration, etc.
High-Quality Internal Layer
Silicone sealed inner layer is more secure and has anti-vibration capabilities. The plastic shell has high impact strength.
Thickened Battery Cable
The battery cable uses a pure flame retardant copper core and can be used for a long time. Length: 6 Meters.
Wide Compatibility
The 12v split charge relay kit is ideal for installation into ATVs, UTVs, trucks, motor homes, and camping applications.
Specifications
Model: JDQTJ-6M
Rating Voltage: 12V DC
Continuous Current: 140A
Intermittent Current: 160A
Cut-in Voltage: 13.3V
Cut-out Voltage: 12.8V
IP Rating: IP65
Material: Nylon Plastic
Current Draw-Charging: 280mA
Current Draw-Standby: 8mA
Power Studs: M6 Stainless Steel
Delay Time: 5 Seconds
Disengage Delay: About 5-10 Seconds
Operation Temperature Range: -30 to 105℃ / -22 to 221℉
Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm
Net Weight: 4.14 lbs / 1.88 kg

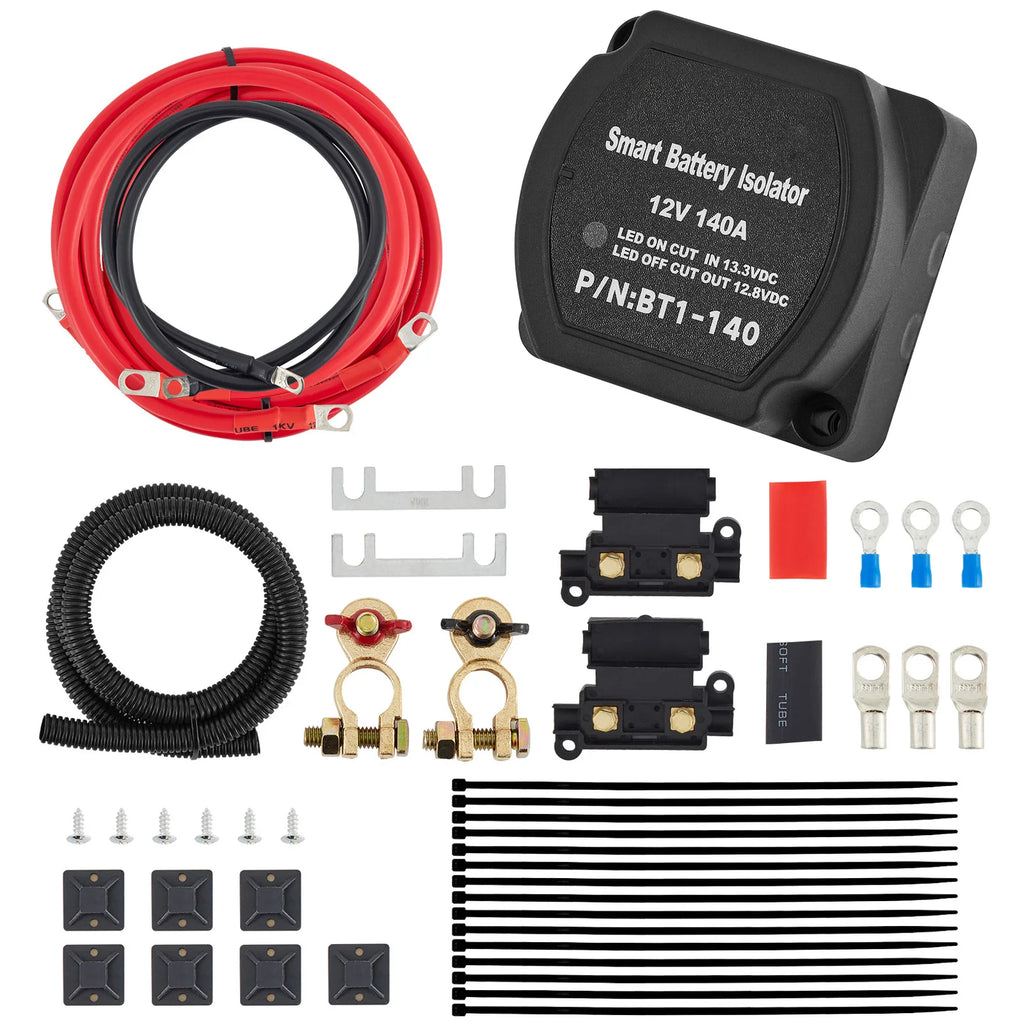

Package Content
1 x Split Charge Relay
1 x 6 mtr Red Battery Cable 110A
1 x 1 mtr Black Ground Cable 110A
1 x Negative Marine Battery Terminal
1 x Positive Marine Battery Terminal
2 x Fuse Holders
3 x Lug Connector
3 x Insulated Blue Ring Terminal
15 x Cable Ties
2 x 250 mm Red 110A Cable
2 x Shrink Tube
1 x Drill Bit
1 x Black Split Conduit
1 x Set of Screws
Features & Details
Dual Battery Isolator: The smart battery isolator cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off.
Easy to Install: This split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Besides, we have detailed instructions for you to complete the installation easily and flawlessly.
Rugged & Durable: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage. You will always be prepared and confident to take on any challenge.
Superb IP65 Waterproof: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.
Fit Various Vehicles: This isolator kit 12v has a compact size of 2.66" x 2.11" x 2.66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.
