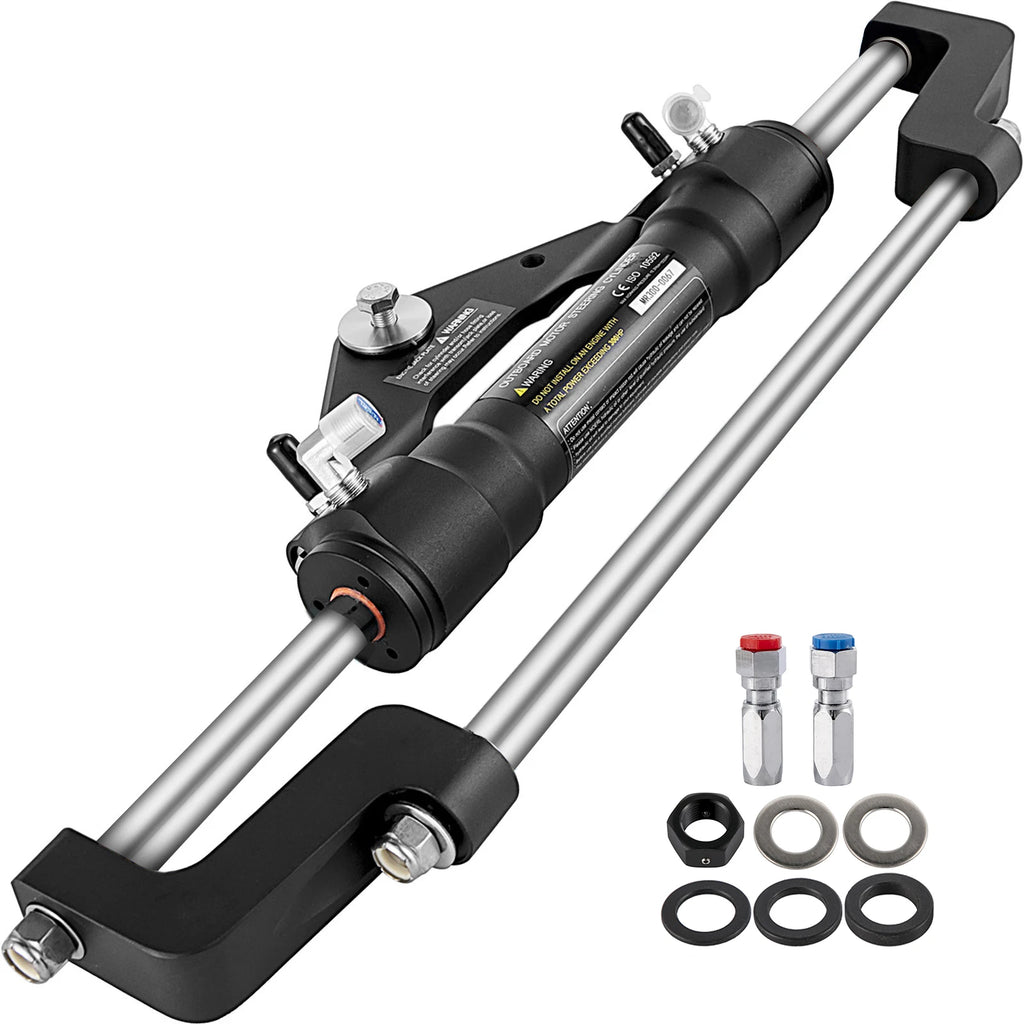

The front mount steering cylinder is designed for single and twin non-power assisted outboard engines up to 300HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard-powered boats like the center console, offshore fishing, bass boats, flats boats, and many more.
HC5345-3 Front Mount Cylinder
Advanced Crush Resistance
Built-In Two-Way Lock
ORB Fitting
Sturdy Aluminum Alloy
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 300 HP
Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.
Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
Wide Application
The HC5345-3 steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.
Specifications
Model: HC5345-3 Cylinder
Replaces: Teleflex Marine HC5345-3
Applicable: Up to 300HP
Max Working Pressure: 10.3Mpa/1500PSI
Package Content
1 x Hydraulic Outboard Steering Cylinder
Features & Details
HC5345-3 Front Mount Cylinder: HC5345-3 steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion. It also features independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection.
ORB Fitting: The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
Will Fit the Following Motors
MFG YEAR MODEL NOTES FORCE 1985 – 1999 90 – 150 HP
HONDA 1996 – DATE 75 – 90 HP
1998 – DATE 30 – 50 HP Requires Spacer Kit #HO5090
2003 – DATE BF135 HP
2010 – DATE 115 HP
JOHNSON/EVINRUDE 1991 – DATE 40 – 300 HP Inc. ETech
1996 – 2003 75 – 250 HP FICHT
2002 – DATE 200 – 225 HP 4-STROKE
2007 – DATE 3.3L/3.4L 200 – 250 HP Inc. H.O. Models MERCURY 1984 – 1994 2.4/2.5 HP EFI May require extensive cowling modifications.
