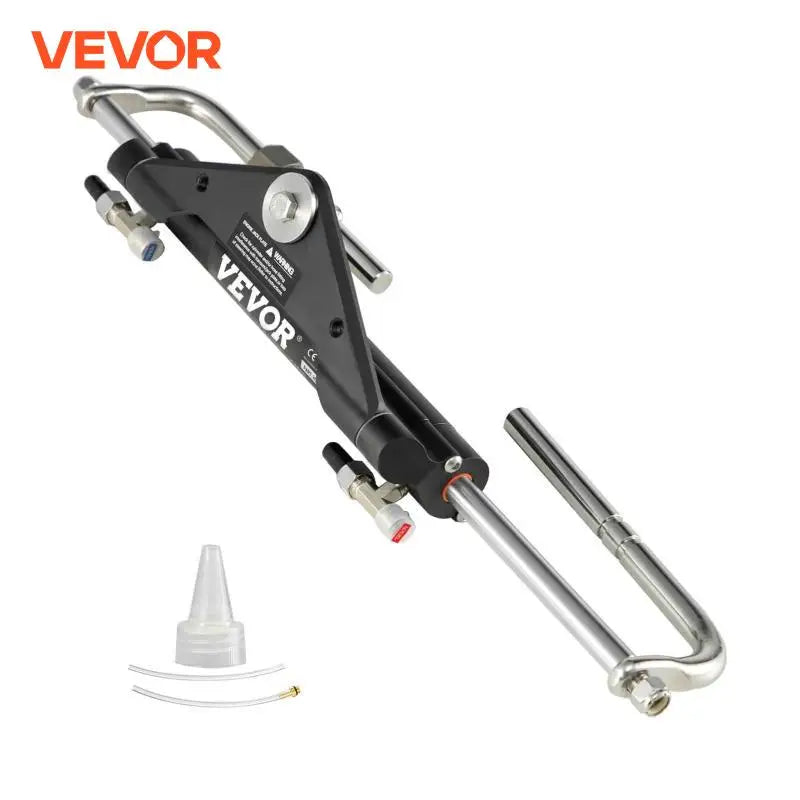

The hydraulic steering cylinder for single-outboard powered boats rated up to 150 HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more.
HC4645H Front Mount Cylinder
Advanced Crush Resistance
Built-In Two-Way Lock
ORB Fitting
Sturdy Aluminum Alloy
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 150 HP.
Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.
Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
Wide Application
The HC4645H steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.
Specifications
Cylinders: HC4645H
Applicable: Up to 150HP
Volume: 117CC
Tube I.D: 32mm
Rod I.D: 16mm
Output Force: 409.7kgf
Strode : 197.3mm
Package Content
1 x Outboard Steering Cylinder
Features & Details
HC4645H Front Mount Cylinder: HC4645H steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
ORB Fitting: The Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
